Walk-In Wardrobe Joinery CAD

These drawings are an example of the CAD work I produce for joinery. The two joinery pieces were drawn for two sections of a walk-in wardrobe project in Kensington. They are scaled, construction ready drawings, so the joinery company could use these to build the pieces.

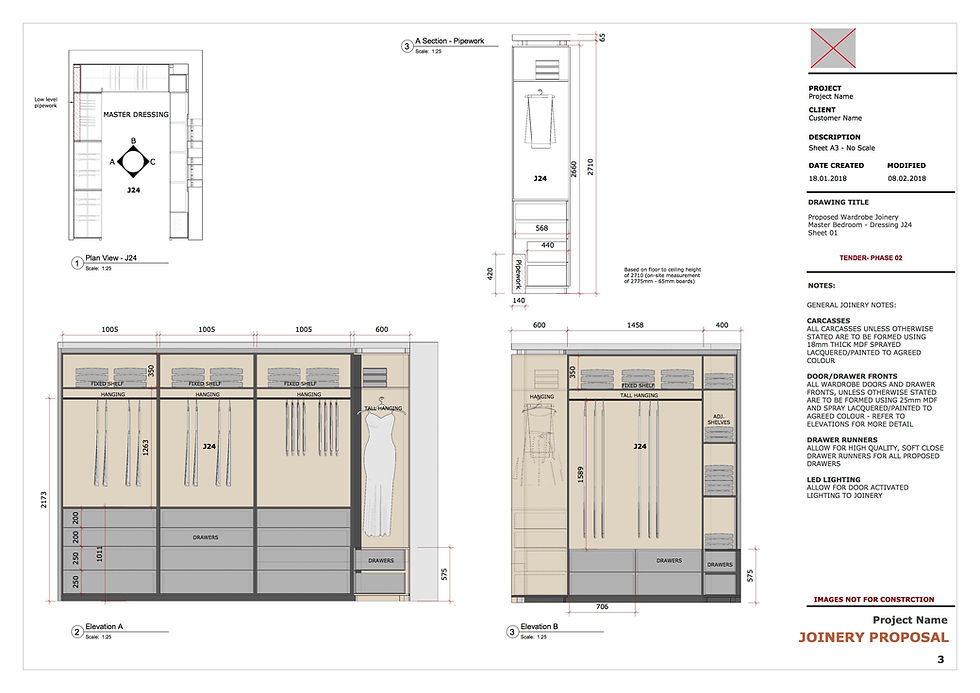

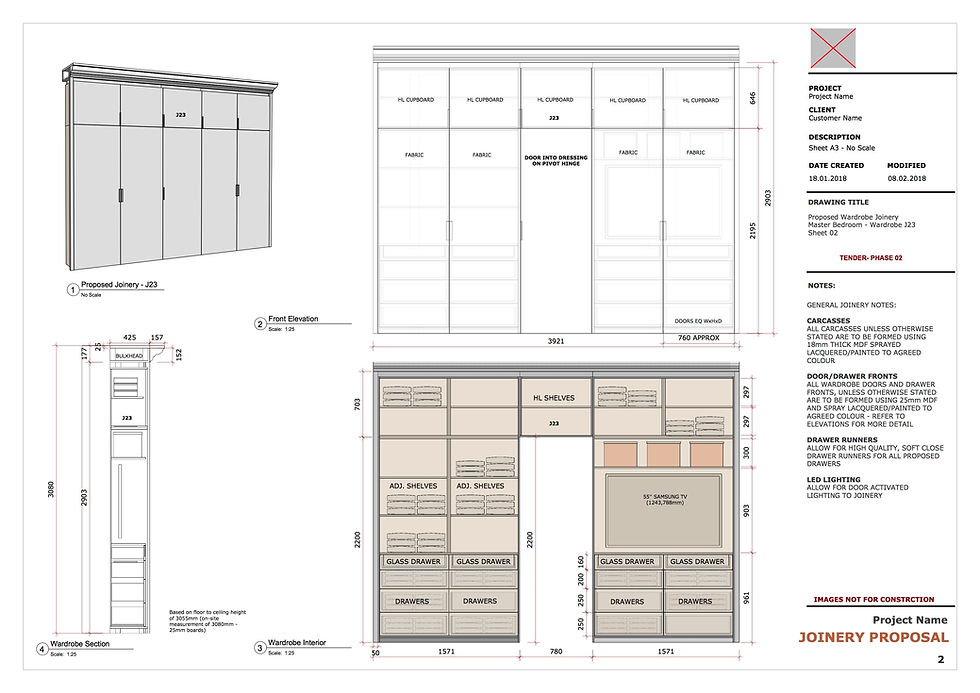

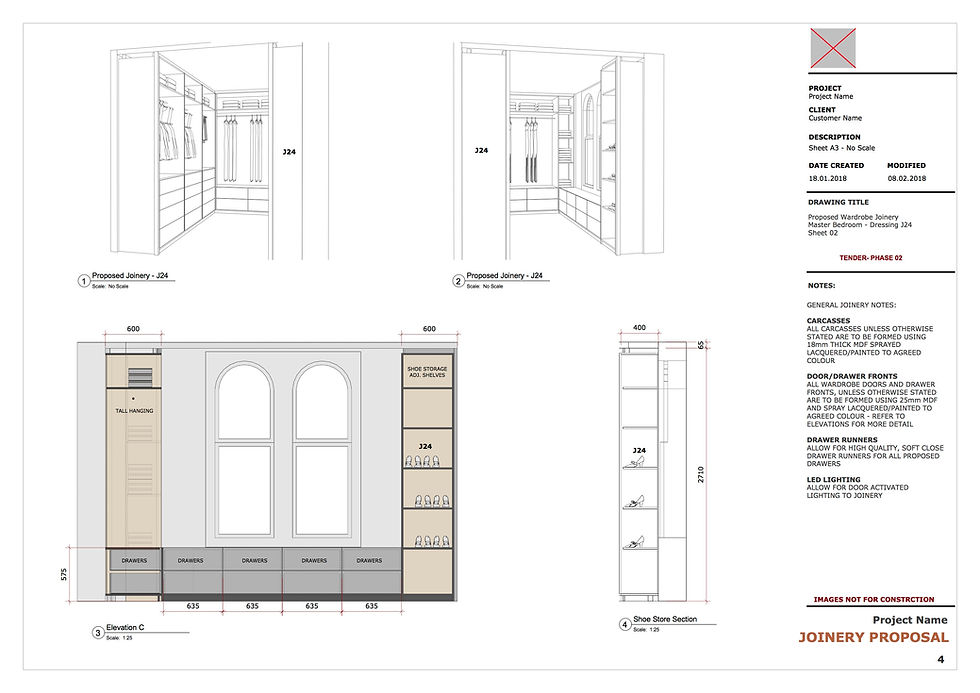

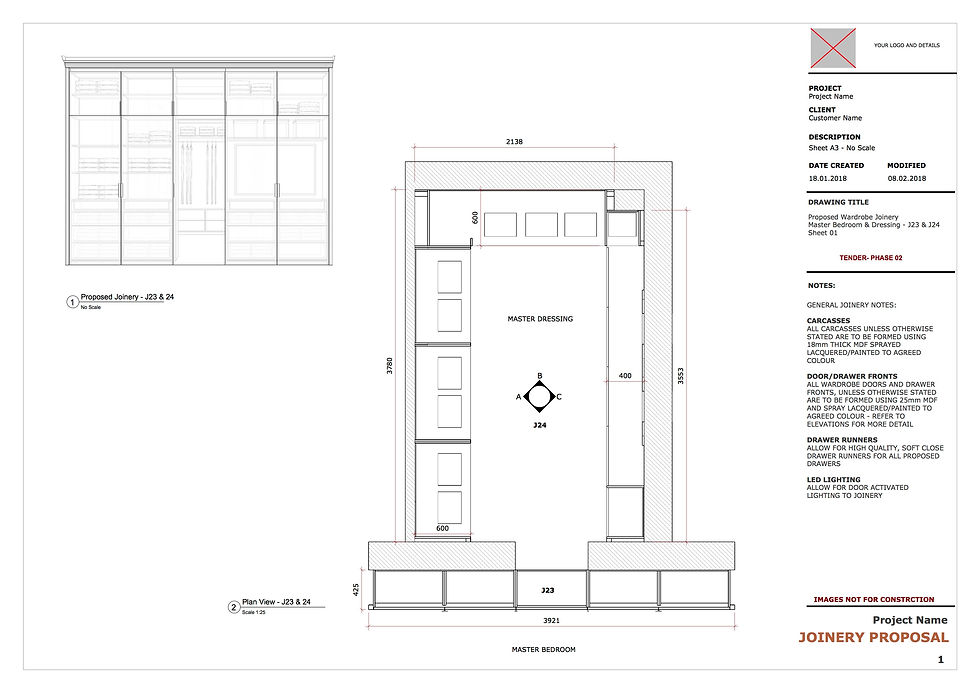

The images below are the CAD drawings for the walk-in wardrobe, which is part of a much larger drawing project [click images for a large view]
